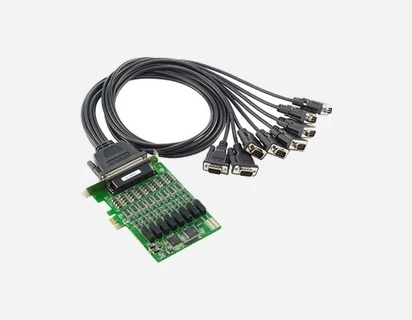

CP-118E-A-I/CP-138E-A-I
CP-118E-A-I/CP-138E-A-I
8-port 3-in-1, RS-422/485 PCI Express board with 4 kV surge protection and 2 kV electrical isolation
8-port 3-in-1, RS-422/485 PCI Express board with 4 kV surge protection and 2 kV electrical isolation
The PCIe Serial Cards, CP-118E-A-I and CP-138E-A-I are smart PCI Express 8 port, designed for POS and ATM applications, and for use by industrial automation
system manufacturers and system integrators. The CP-118E-A-I and CP-138E-A-I are compatible with all popular operating systems, and each of their 8 serial ports supports data rates of up to 921.6 kbps, and provide full modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, the CP-118E-A-I and CP-138E-A-I work with PCI Express x1, allowing the boards to be installed in any PCI Express slot.
| Name | Action |
|---|---|
| CP-118E-A-I/CP-138E-A-I Datasheet |
| Name | Action |
|---|---|
| PCI Express Series Quick Installation Guide | |
| PCI Express User’s Manual |
- Features
- Ordering info
- Video
- PCI Express x1 compliant
- Serial communication speed up to 921.6 kbps
- 128-byte FIFO and on-chip S/W flow control
- Variety of connection cables and boxes available for RS- 232/422/485
- Drivers provided for the latest versions of Windows, Linux, and Unix
- Easy maintenance with on-board LED display and management software
Available Models
| Model No. | Description | |
|---|---|---|
| CP-118E-A-I | 8-port RS-232/422/485 PCI Express x1 serial board w/ surge protection and electrical isolation | |
| CP-138E-A-I | 8-port RS-422/485 PCI Express Smart x1 serial board w/ surge protection and electrical isolation |
Optional Accessories
| Model No. | Description | |
|---|---|---|
| CBL-M78M9x8-100 | 8-port male DB9 connection cable | |
| CBL-M78M25x8-100 | 8-port male DB25 connection cable |
