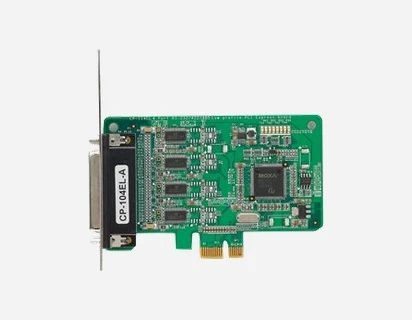

The PCIe Serial Card CP-104EL-A is a smart, 4-port PCI Express board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board’s 4 RS-232 serial ports supports a super fast 921.6 kbps baudrate. The CP-104EL-A provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and its PCI Express “x1” classification allows it to be installed in any PCI Express slot.
| Name | Action |
|---|---|
| Download |
| Name | Action |
|---|---|
| Download |
| Name | Action |
|---|---|
| Download |
| Model No. | Model Description |
|---|---|
| CP-104EL-A-DB25M | 4-port RS-232 low profile PCI Express x1 serial board (includes DB25 male cable) |
| CP-104EL-A-DB9M | 4-port RS-232 PCI low profile Express x1 serial board (includes DB9 male cable) |
| Model No. | Model Description |
|---|---|
| CBL-M44M25x4-50 | DB44(M) to 4 x DB25(M) Cable |
| CBL-M44M9x4-50 | DB44(M) to 4 x DB9(M) Cable |
