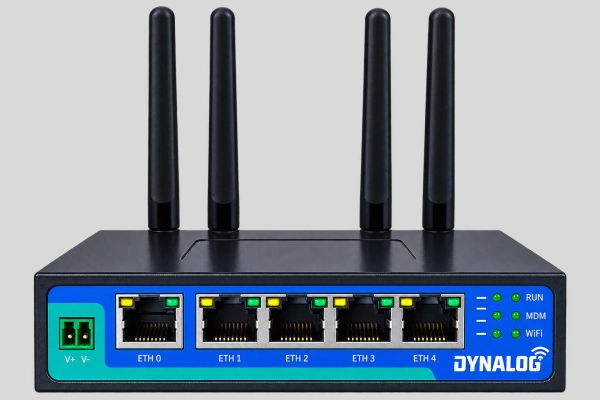

DYNA-2105
Dual-SIM VPN IIoT router with five ethernet ports
Features
- Dual-SIM redundancy for reliable 4G cellular connectivity
- Five 10/100 Mbps Ethernet ports, configurable as 5 LAN or 4 LAN + 1 WAN
- Cellular, Ethernet and Wi-Fi WAN failover with ICMP link detection
- IPsec, OpenVPN, GRE and WireGuard VPN support
- 2.4 GHz Wi-Fi with Access Point and Client modes
- Remote management through Web, CLI and SMS
- Industrial design with 9–36 V DC input, DIN-rail mounting and -35°C to +75°C operation
The DYNA-2105 is a compact industrial 4G cellular router designed to provide reliable and secure connectivity for IoT and machine-to-machine applications. Its dual-SIM, single-standby capability helps maintain cellular connectivity, while five 10/100 Mbps Ethernet ports can be configured as five LAN ports or four LAN ports and one WAN port.
The integrated Link Manager supports backup between cellular, Ethernet WAN and WLAN WAN connections, with ICMP-based link detection. Secure remote communications are supported through IPsec, OpenVPN, GRE and WireGuard VPN tunnels.
The router also provides 2.4 GHz Wi-Fi, firewall functions, remote management and automatic reboot options. Its metal enclosure, 9–36 V DC input, 35 mm DIN-rail mounting and -35°C to +75°C operating-temperature range make it suitable for installation in industrial cabinets and remote field locations.
