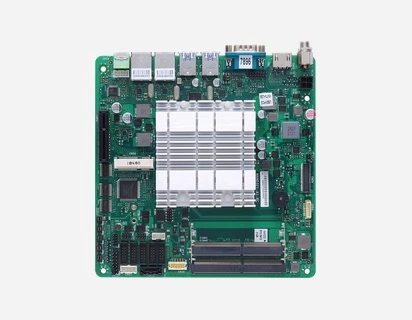

MANO321
Thin Mini-ITX – Intel Celeron J6412, HDMI/VGA/LVDS, Mini PCIe, M.2 Key B
Features
- Intel® Celeron® processor J6412
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCIe Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM
- Low profile
- 9 to 20 VDC power in
- HDMI, VGA, LVDS with triple view supported
| CPU | Intel® Celeron® processor J6412 |
| Chipset | SoC integrated |
| System Memory | 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 32GB |
| BIOS | AMI |
| COM | 1 x RS-232/422/485 (internal) |
| 4 x RS-232 (internal) | |
| 1 x RS-232/422/485 (rear I/O) | |
| USB | 4 x USB 2.0 (internal) |
| 4 x USB 3.1 (rear I/O) | |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Realtek RTL8111H) |
| Display | 1 x HDMI 1.4b |
| 1 x VGA | |
| 1 x eDP (LVDS BOM optional) | |
| GPIO | 8-channel in/out programmable |
| Audio | 1 x audio header (Mic-in/Line-in/Speaker-out) |
| Storage | 1 x SATA-600 |
| TPM | Infenon SLB9760 T2.0 with TPM 2.0 compliant |
| Expansion | 1 x PCIe x4 slot with PCIe x2 signal |
| 1 x M.2 Key B | |
| 1 x PCI Express Mini Card slot | |
| 1 x SIM Card slot | |
| Others | 1 x 1 x 5 SMBus pin header |
| Battery | Lithium 3V/220 mAH |
| Power Consumption (Max.) | 32.7W |
| Power Input | 1 x 9 to 20V DC Jack |
| 1 x 9 to 20V 4-pin ATX connector | |
| Watchdog Timer | 255 levels, 1 to 255 sec. |
| Hardware Monitoring | Yes |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions | 170 x 170 mm |
| Board Thickness | 1.6 mm |
| Certifications | CE |
