CP-116E-A
Multiport Serial Boards

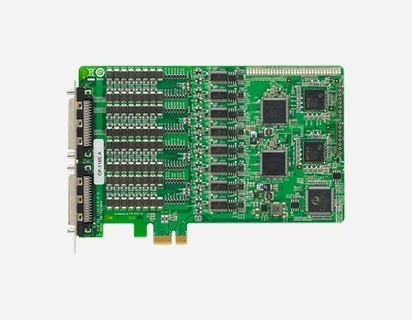

CP-116E-A
16-port RS-232/422/485 PCI Express board with 4 kV surge protection
16-port RS-232/422/485 PCI Express board with 4 kV surge protection
The PCIe Serial Card CP-116E-A is a smart PCI Express multiport serial board designed for POS and ATM applications, and for use by industrial automation system manufacturers and system integrators. The CP-116E-A is compatible with all popular operating systems, and each of its 8 serial ports supports data rates of up to 921.6 kbps, and provides full modem control signals, ensuring compatibility with a wide range of serial peripherals. In addition, the CP-116E-A works with PCI Express x1, allowing the board to be installed in any PCI Express slot.
| Name | Action |
|---|---|
| CP-116E-A Datasheet |
| Name | Action |
|---|---|
| PCI Express Series Quick Installation Guide | |
| PCI Express User’s Manual |
Features
- PCI Express x1 compliant
- Serial communication speed up to 921.6 kbps
- 128-byte FIFO and on-chip H/W, S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Drivers provided for the latest versions of Windows, Linux, and Unix
- Easy maintenance with on-board LED display and management software
- 15 kV ESD and 4 kV surge protection onboard
Ordering info
Available Models
| Model No. | Description | |
|---|---|---|
| CP-116E-A | 16-port RS-232/422/485 PCI Express board with 4 kV surge protection |
Optional Accessories
| Model No. | Description | |
|---|---|---|
| OPT8-M9+ | VHDCI 68 to 8 x DB9(M) Connection Box | |
| OPT8A+ | VHDCI 68 to 8 x DB25(F) Connection Box | |
| OPT8S+ | VHDCI 68 to 8 x DB25(F) Connection Box w/ Surge Protection | |
| OPT8B+ | VHDCI 68 to 8 x DB25(M) Connection Boxs | |
| CBL-M68M25x8-100 (Opt8C+) | SCSI VHDCI 68 to 8 x DB25(M) Cable with 100cm | |
| CBL-M68M9x8-100 (Opt8D+) | SCSI VHDCI 68 to 8 x DB9(M) Cable with 100cm |
