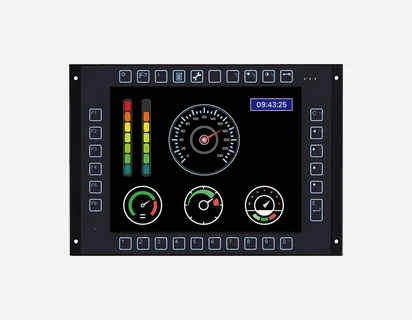

GOT710S
EN50155 S3 10.4" SVGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)
Features
- Sunlight readable 10.4" SVGA TFT LCD with 1000 nits of high brightness
- Intel Atom® processor E3845 1.91 GHz
- Alternative keypad control in the front bezel
- M12-type lockable connectors design
- Auto-dimming for different environments
- Operating temperature ranges from -40°C to +70°C
- Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20 ms power interruption protection
- EN 50155, EN 45545-2 certified for railway application
- Fanless design
- IP65-rated front bezel
- VESA mount and wall mount options
Computer
CPUIntel Atom® processor E3845 1.91 GHz (Bay Trail)
ChipsetSoC integrated
System MemoryDDR3L 4GB onboard
BIOSAMI
GraphicsIntegrated Intel® GFX
Watchdog Timer255 levels, 1 to 255 seconds
Display
Display Type10.4" SVGA TFT LCD
Brightness1000 nits
Resolution800 x 600
Viewing Angle (H/V)160°/160°
Touchscreen5-wire resistive touchscreen with or without keyboard
Front BezelIP65-rated aluminum front bezel, IP40-rated rear protection
I/o interfaces
RS-232/422/4852 x isolated M12 A-coded (isolation level 1.5 kV)
GbE2 x isolated M12 X-coded (isolation level 1.5 kV)
USB 2.01 x M12 A-coded (2 port signal)
DC Input1 x M12 A-coded
Audio1 x DB15 (line-in, mic-in, speaker-out or line-out)
DIO1 x isolated terminal block (6-in/2-out, isolation level 1.5 kV)
CAN Bus1 x isolated DB9 (isolation level 1.5 kV)
Storage
Storage1 x mSATA
Expansion
Expansion Interface2 x PCI Express Mini Card slot (slot 2 for mSATA use only)
Power
Power SupplyTypical 24 to 110 VDC
Power Consumption24 to 110 VDC, 1.4 to 0.29 A
Physical
Dimensions (W x D x H)310 x 61.5 x 214 mm (12.20" x 2.42" x 8.43")
Packing Dimensions (W x D x H)392 x 195 x 447 mm (15.43" x 7.68" x 17.6")
Weight (net/gross)2.6 kg (5.73 lbs)/4.4 kg (9.7 lbs)
Environmental
Operating Temperature-40°C to +70°C (-40°F to +158°F)
Relative Humidity10% to 95% @ +40°C, non-condensing
