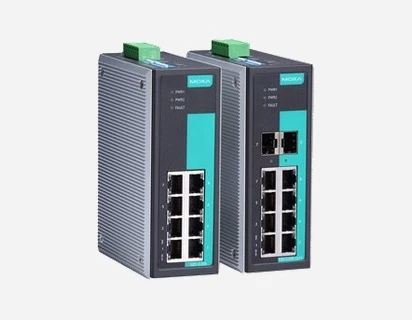

EDS-G308 Series
8G-port full Gigabit unmanaged Ethernet switches
Features
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 9.6 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75°C wide operating temperature range (-T models)
- 8 Gigabit Ethernet ports with up to 2 fiber-optic ports
- 4-pin DIP switches for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving
- 100/1000 SFP speed switching
- 100% burn-in test for industrial automation applications
- DIN rail or distribution box installation
- Auto negotiation speed, full/half duplex mode, auto MDI/MDI-X connection
The EDS-G308 switches are equipped with 8 Gigabit Ethernet ports and up to 2 fiber-optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. A standard-temperature model, which has an operating temperature range of -10 to 60°C, and a wide-temperature range model, which has an operating temperature range of -40 to 75°C, are available. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
