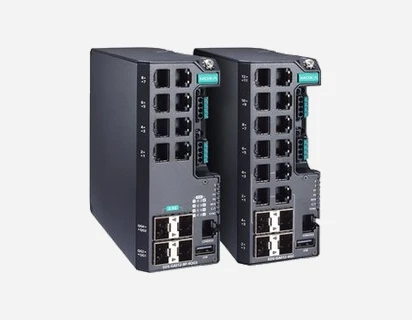

EDS-G4012 Series
8 1GbE, 4 1-to-2.5GbE-port managed Ethernet switches with 802.3bt PoE options
Features
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
- Wide range of power input options for flexible deployment
- Compact and flexible housing design to fit into confined spaces
- Supports MXstudio for easy, visualized industrial network management
- IEC 62443-4-2 Security Level 2 certified
- 8 10/100/1000BaseT(X) Ethernet ports with PoE options (802.3af, 802.3at, 802.3bt)
- 4 combo ports supporting 10/100/1000BaseT(X) or 100/1000BaseSFP
- 4 1000/2500BaseSFP ports
- Support for industrial protocols: EtherNet/IP, Modbus TCP, PROFINET IO Device
- Advanced management features: IPv4/IPv6, DHCP, SNMP, RMON, TFTP, SFTP, HTTP/HTTPS, Telnet, Syslog
- Redundancy protocols: STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, Link Aggregation, MSTP
- Security features: Broadcast storm protection, Rate Limit, MAC filtering, SSH, RADIUS, TACACS+, Access control list, DHCP Snooping
- Time management: SNTP, NTP Server/Client, IEEE 1588v2 PTP (hardware-based)
- MAC table size: 16 K
- Jumbo frame support: 9.216 KB
The EDS-G4012 Series is equipped with 12 Gigabit Ethernet ports and up to four 1 Gbps or 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly. This Series also comes with eight 10/100/1000BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet port options to connect high-bandwidth PoE devices. Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
