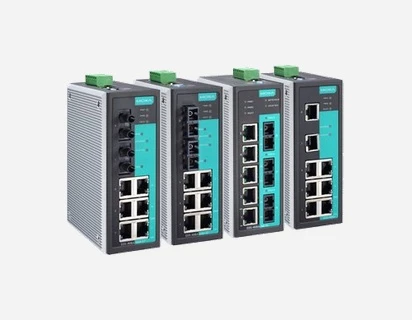

EDS-408A Series
8-port entry-level managed Ethernet switches
Features
- Turbo Ring and Turbo Chain with recovery time < 20 ms @ 250 switches
- RSTP/STP for network redundancy
- IGMP Snooping for multicast management
- QoS with IEEE 802.1p and TOS/DiffServ support
- IEEE 802.1Q VLAN and port-based VLAN support
- Easy network management via web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- MXstudio support for visualized industrial network management
- DHCP Option 82 for IP address assignment with different policies
- Port mirroring for online debugging
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP
- RMON for proactive network monitoring
- SNMPv1/v2c/v3 for network management security
- Bandwidth management to prevent unpredictable network status
- EtherNet/IP EDS file, custom AOI, and FactoryTalk View faceplate available
- PROFINET GSDML file and SIMATIC STEP 7 device icons available
- Broadcast storm protection
- HTTPS/SSL and SSH security
- NTP Server/Client and SNTP support
- Port Lock and Trust access control
- Auto negotiation speed and Full/Half duplex mode
- Auto MDI/MDI-X connection
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
