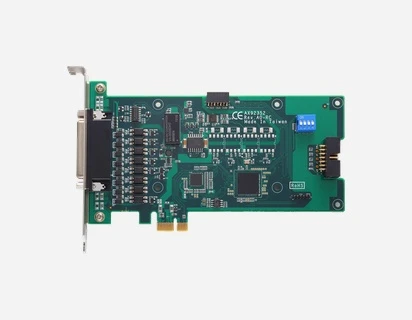

AX92352
2-CH Encoder Card with Real-time Trigger I/O
Features
- Synchronizes devices via real-time I/O
- Applied to area scan and line scan applications
- Integrates multiple I/O
- 2-CH 32-bit incremental quadrature encoder input
- 4-CH trigger input
- 4-CH trigger output
- 8-CH isolated DI, 8-CH isolated DO
- Programmable interrupt functions
- PCI Express x1 compliant
I/o interfaces
Encoder Input Channels2-CH 32-bit incremental quadrature encoder input (A/B/Z)
Encoder Input TypeDifferential or single-ended 5V, 12V open collector
Encoder Counter Modex1/4, x1/3, x1/2, x1, x2, x4
Encoder Input FilterProgrammable de-bounce filter
Encoder Max Frequency1MHz
Encoder Operating ModeLinear function, FIFO, Position latch
Trigger Input Channels4-CH
Trigger Input TypeSink
Trigger Input RangeOn (Logic 1) 3.3-30 VDC, Off (Logic 0) 0-2 VDC
Trigger Input Response Time1us
Trigger Input FilterProgrammable de-bounce filter
Trigger Output Channels4-CH
Trigger Output Voltage0-30 VDC, sink, open collector
Trigger Output CurrentMax 100mA per channel
Trigger Output Response Time1us
Trigger Output ConfigurationDerived from 4CH trigger input or encoder input with programmable pulse delay and duration time
Trigger Sources4CH trigger input/encoder with 4 x Linear function, 2 x FIFO
Digital Input Channels8-CH
Digital Input TypeSink/Source
Digital Input VoltageOn (Logic 1) 10-30 VDC or dry contact, Off (Logic 0) 0-3 VDC
Digital Input Impedance7.5KΩ
Digital Output Channels8-CH
Digital Output TypeSink, open collector
Digital Output Supply Voltage5-30 VDC
Digital Output Sink CurrentMax 200mA per channel
I/O ConnectorD-sub 44-pin female connector
Expansion
Bus TypePCI Express x1
Power
Power Requirements180mA @ +3.3V (Max.), 120mA @ +12V (Max.)
Physical
Dimensions168 x 100 mm
Board ID4-bit
Environmental
Operating Temperature0°C to +70°C (32°F to +158°F)
Storage Temperature-20°C to +80°C (-4°F to +176°F)
Humidity10-95% RH, non-condensing
Isolation Voltage2 kVDC
Certifications
EOS SupportWindows 7/Windows 10 (32/64bit)
Software CompatibilityC#, C/C++
I/o interfaces
Encoder Input Channels2-CH 32-bit incremental quadrature encoder input (A/B/Z)
Encoder Input TypeDifferential or single-ended 5V, 12V open collector
Encoder Counter Modex1/4, x1/3, x1/2, x1, x2, x4
Encoder Input FilterProgrammable de-bounce filter
Encoder Max Frequency1MHz
Encoder Operating ModeLinear function, FIFO, Position latch
Trigger Input Channels4-CH
Trigger Input TypeSink
Trigger Input RangeOn (Logic 1) 3.3-30 VDC, Off (Logic 0) 0-2 VDC
Trigger Input Response Time1us
Trigger Input FilterProgrammable de-bounce filter
Trigger Output Channels4-CH
Trigger Output Voltage0-30 VDC, sink, open collector
Trigger Output CurrentMax 100mA per channel
Trigger Output Response Time1us
Trigger Output ConfigurationDerived from 4CH trigger input or encoder input with programmable pulse delay and duration time
Trigger Sources4CH trigger input/encoder with 4 x Linear function, 2 x FIFO
Digital Input Channels8-CH
Digital Input TypeSink/Source
Digital Input VoltageOn (Logic 1) 10-30 VDC or dry contact, Off (Logic 0) 0-3 VDC
Digital Input Impedance7.5KΩ
Digital Output Channels8-CH
Digital Output TypeSink, open collector
Digital Output Supply Voltage5-30 VDC
Digital Output Sink CurrentMax 200mA per channel
I/O ConnectorD-sub 44-pin female connector
Expansion
Bus TypePCI Express x1
Power
Power Requirements180mA @ +3.3V (Max.), 120mA @ +12V (Max.)
Physical
Dimensions168 x 100 mm
Board ID4-bit
Environmental
Operating Temperature0°C to +70°C (32°F to +158°F)
Storage Temperature-20°C to +80°C (-4°F to +176°F)
Humidity10-95% RH, non-condensing
Isolation Voltage2 kVDC
Certifications
EOS SupportWindows 7/Windows 10 (32/64bit)
Software CompatibilityC#, C/C++
