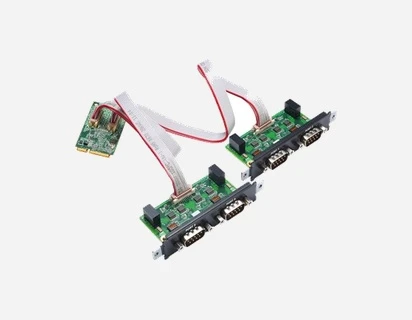

CP-134N Series
4-port RS-422/485 Mini PCI Express boards
Features
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- 1 or 150 kilo-ohm adjustable pull high/low resistor
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- DIP switch for 120-ohm terminal resistance
- 1 kV line-to-line surge protection
- 2.5 kV isolation
- High performance 16C950 compatible UARTs
- Compatible with all popular operating systems
- Door brackets included for installation in Moxa IPC expansion slot
- Operating temperature range -40 to 85°C
The CP-134N is a Mini PCI Express multiport serial board is designed for various applications and users such as system integrators, and industrial automation system and industrial PC manufacturers. It is compatible with all popular operating systems and supports data rates of up to 921.6 kbps.
The serial board also provides 1 kV line-to-line surge protection and 2.5 kV isolation, ensuring compatibility with a wide range of industrial environments. Furthermore, it also includes a DIP switch for easily adjusting the terminal and pull-high/low resistors for various environments and applications.
The CP-134N is a Mini PCI Express multiport serial board is designed for various applications and users such as system integrators, and industrial automation system and industrial PC manufacturers. It is compatible with all popular operating systems and supports data rates of up to 921.6 kbps.
The serial board also provides 1 kV line-to-line surge protection and 2.5 kV isolation, ensuring compatibility with a wide range of industrial environments. Furthermore, it also includes a DIP switch for easily adjusting the terminal and pull-high/low resistors for various environments and applications.
