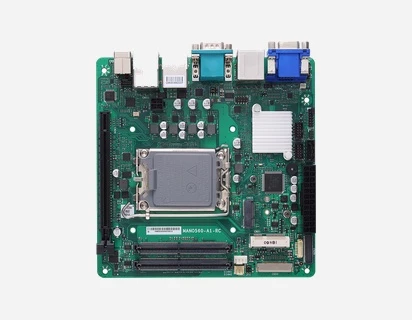

MANO560
Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® Processor, DisplayPort, HDMI, VGA, LVDS, USB 3.2, M.2, and Dual GbE LAN
Features
- LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor
- Intel® H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB memory
- 2 USB 3.2 Gen 1 and 5 USB 2.0
- 4 COM ports
- 1 PCIe x16 and 1 M.2 Key E slot
- 1 full-size PCI Express Mini Card slot
- 1 SATA-600
- 1 M.2 Key B for USB 3.2 interface 5G module
Computer
CPULGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor (up to 65W)
ChipsetIntel® H610
System Memory2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec.
TPMOnboard TPM 2.0 (TPM IC: SLB9670)
Display
GPUIntel® UHD Graphics
MemoryShare system memory
Display Interfaces1 x DisplayPort, 1 x HDMI, 1 x LVDS (eDP BOM optional), 1 x VGA
I/o interfaces
USB2 x USB 3.2 Gen 1, 5 x USB 2.0
Serial1 x RS-232/422/485 (with +5V/+12V power), 3 x RS-232
Ethernet1 x 2500/1000/100/10 Mbps (Intel® I225-V with Wake-on-LAN and PXE), 1 x 1000/100/10 Mbps (Intel® I219-V with Wake-on-LAN and PXE)
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC897
Digital I/O8-channel programmable input/output
Hardware MonitoringDetect CPU/system temperature, voltage and fan speed
Storage
SATA1 x SATA-600
M.2 Slots1 x M.2 Key B (USB 3.2 interface for 3042/3052 5G module or SATA interface for 2242 SSD), 1 x M.2 Key E 2230
Expansion
PCIe1 x PCIe x16
PCIe Mini Card1 x full-size PCI Express Mini Card slot
Power
InputStandard 12V ATX power, 24+4 pin ATX connector, AT mode auto power function supported
BatteryLithium 3V/220mAH
Physical
Size170 x 170 mm
Board Thickness1.6 mm
Form FactorMini-ITX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Relative Humidity10% to 95% relative humidity, non-condensing
