MANO526

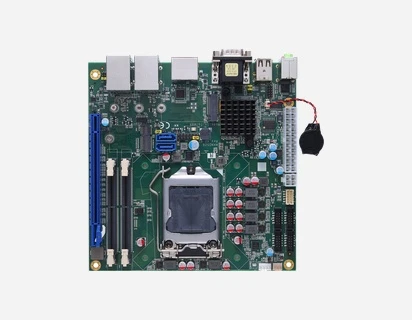

Mini-ITX SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio
Features
- LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3 processor
- Intel® Q370 chipset
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 4 USB 3.0 and 4 USB 2.0
- 6 COM ports
- 2 SATA-600 and 1 M.2 Key M
- PCIe x16 and M.2 Key E
Computer
CPULGA1151 socket 9th/8th Gen Intel Core i7/i5/i3, Pentium Gold/Celeron processors (up to 65W)
System Memory2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
ChipsetIntel Q370
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec.
BatteryLithium 3V/220mAH
Display
GraphicsIntel integrated Gfx graphics engine
Display MemoryShared system memory
Display Interfaces1 x DisplayPort++, 1 x eDP, 1 x HDMI
I/o interfaces
USB4 x USB 3.0, 4 x USB 2.0
Serial1 x RS-232/422/485 (with +5V/+12V power), 5 x RS-232
Ethernet2 x 10/100/1000 Mbps (Intel I211-AT and I219-LM, Wake-on-LAN, PXE Boot ROM)
AudioHD Codec MIC-in/Line-in/Line-out with Realtek ALC888S
Digital I/O8-channel programmable input/output
TPMOnboard TPM 2.0
Hardware MonitoringCPU/system temperature, voltage, fan speed
Storage
SATA2 x SATA-600
SSD1 x M.2 Key M 2242/2260/2280 (NVMe)
Expansion
PCIe1 x PCIe x16
M.21 x M.2 Key E 2230
Power
Power InputSTD 12V ATX, 24+4 pin ATX connector
AT ModeAuto Power function supported
Physical
Form FactorMini-ITX
Dimensions170 x 170 mm
Board Thickness1.6 mm
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Relative Humidity10% to 95%, non-condensing
Computer
CPULGA1151 socket 9th/8th Gen Intel Core i7/i5/i3, Pentium Gold/Celeron processors (up to 65W)
System Memory2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
ChipsetIntel Q370
BIOSAMI
Watchdog Timer255 levels, 1 to 255 sec.
BatteryLithium 3V/220mAH
Display
GraphicsIntel integrated Gfx graphics engine
Display MemoryShared system memory
Display Interfaces1 x DisplayPort++, 1 x eDP, 1 x HDMI
I/o interfaces
USB4 x USB 3.0, 4 x USB 2.0
Serial1 x RS-232/422/485 (with +5V/+12V power), 5 x RS-232
Ethernet2 x 10/100/1000 Mbps (Intel I211-AT and I219-LM, Wake-on-LAN, PXE Boot ROM)
AudioHD Codec MIC-in/Line-in/Line-out with Realtek ALC888S
Digital I/O8-channel programmable input/output
TPMOnboard TPM 2.0
Hardware MonitoringCPU/system temperature, voltage, fan speed
Storage
SATA2 x SATA-600
SSD1 x M.2 Key M 2242/2260/2280 (NVMe)
Expansion
PCIe1 x PCIe x16
M.21 x M.2 Key E 2230
Power
Power InputSTD 12V ATX, 24+4 pin ATX connector
AT ModeAuto Power function supported
Physical
Form FactorMini-ITX
Dimensions170 x 170 mm
Board Thickness1.6 mm
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Relative Humidity10% to 95%, non-condensing
