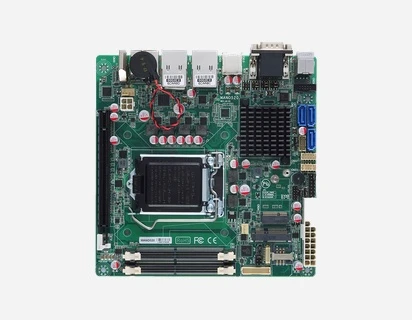

MANO520
Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, Dual DisplayPort++, HDMI, LVDS, USB 3.0, mSATA, M.2 and Dual GbE LAN
Features
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor
- Intel® H310 chipset
- 2x DDR4 SO-DIMM up to 32GB memory
- Dual DisplayPort++
- HDMI 1.4b (3840x2160@30Hz)
- LVDS 18/24-bit single/dual channel
- 4x USB 3.0 and 4x USB 2.0
- 2x Gigabit Ethernet (Intel I210-AT and I219-LM)
- 3x SATA-600 and 1x mSATA
- 1x PCIe x16 and 1x M.2 Key E
- 4x COM ports (1x RS-232/422/485 with power, 3x RS-232)
- 8-channel Digital I/O
- HD Audio with Realtek ALC662
- Watchdog Timer (255 levels, 1-255 sec)
- OnBoard TPM 2.0 (optional)
- Wake-on-LAN and PXE Boot ROM support
- Hardware monitoring for CPU/system temperature, voltage, fan speed
Computer
ProcessorLGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® Gold, Celeron® (up to 65W)
ChipsetIntel® H310
BIOSAMI
System Memory2x 260-pin DDR4-2666/2400 SO-DIMM up to 32GB
Display
GraphicsIntel® integrated Gfx graphic engine
MemoryShared system memory
DisplayPort++2x
HDMI1x HDMI 1.4b (3840x2160@30Hz)
LVDS1x 18/24-bit single/dual channel
I/o interfaces
USB 3.04x
USB 2.04x
Serial1x RS-232/422/485 (with +5V/+12V power), 3x RS-232
Ethernet2x 10/100/1000Mbps (Intel I210-AT and I219-LM, Wake-on-LAN, PXE Boot ROM)
AudioHD Codec as MIC-in/Line-in/Line-out with Realtek ALC662
Digital I/O8-channel in/out programmed
TPMOnboard TPM 2.0 (optional)
Storage
SATA3x SATA-600
mSATA1x
Expansion
PCIe1x PCIe x16
M.21x M.2 Key E 2230
Power
Power InputStandard 12V ATX power 24+4 pin ATX connector
BatteryLithium 3V/220mAH
Physical
Form FactorMini-ITX
Dimensions170x170mm
Board Thickness1.6mm
Environmental
Operating Temperature0℃ to +60℃ (+32°F to +140°F)
Relative Humidity10% to 95% non-condensing
Additional
Watchdog Timer255 levels, 1-255 sec
Hardware MonitoringCPU/system temperature, voltage, fan speed detection
Computer
ProcessorLGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® Gold, Celeron® (up to 65W)
ChipsetIntel® H310
BIOSAMI
System Memory2x 260-pin DDR4-2666/2400 SO-DIMM up to 32GB
Display
GraphicsIntel® integrated Gfx graphic engine
MemoryShared system memory
DisplayPort++2x
HDMI1x HDMI 1.4b (3840x2160@30Hz)
LVDS1x 18/24-bit single/dual channel
I/o interfaces
USB 3.04x
USB 2.04x
Serial1x RS-232/422/485 (with +5V/+12V power), 3x RS-232
Ethernet2x 10/100/1000Mbps (Intel I210-AT and I219-LM, Wake-on-LAN, PXE Boot ROM)
AudioHD Codec as MIC-in/Line-in/Line-out with Realtek ALC662
Digital I/O8-channel in/out programmed
TPMOnboard TPM 2.0 (optional)
Storage
SATA3x SATA-600
mSATA1x
Expansion
PCIe1x PCIe x16
M.21x M.2 Key E 2230
Power
Power InputStandard 12V ATX power 24+4 pin ATX connector
BatteryLithium 3V/220mAH
Physical
Form FactorMini-ITX
Dimensions170x170mm
Board Thickness1.6mm
Environmental
Operating Temperature0℃ to +60℃ (+32°F to +140°F)
Relative Humidity10% to 95% non-condensing
Additional
Watchdog Timer255 levels, 1-255 sec
Hardware MonitoringCPU/system temperature, voltage, fan speed detection
