IMB530

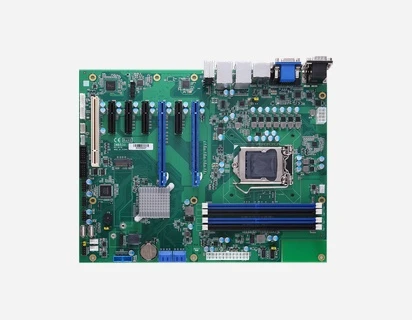

ATX Motherboard with LGA1200 Socket 11th/10th Gen Intel® Core™ i9/i7/i5/i3, Xeon® E Processor, Intel® W480E, ECC DDR4, USB 3.2 Gen1/Gen2, NVMe, Dual LAN, VGA, DisplayPort++, DVI-D, and HDMI
Features
- LGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Xeon® W processor (Comet Lake)
- Four 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM for up to 128GB of memory
- DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
- Supports M.2 Key M 2280
- 2 USB 3.2 Gen2 and 4 USB 3.2 Gen1
- Supports TPM 2.0 (optional)
- 1 x PCIe x16 slot (signal: x16 or x8)
- 1 x PCIe x16 slot (signal: x0 or x8)
- 3 x PCIe x4 slot open ended
- 1 x PCIe x4 slot open ended (signal: x1)
- 1 x PCI
- 4 x SATA-600 with RAID 0/1/5/10
- Dual LAN (Intel® I219-LM and Intel® I210-AT)
- Hardware monitoring with CPU/system temperature and smart fan control
- 8-channel programmable Digital I/O
- 2 x RS-232/422/485 serial ports
Computer
CPU SocketLGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Xeon® W processor (up to 125W)
ChipsetIntel® W480E
System Memory4 x 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Storage
M.2M.2 Key M 2280 (signal: PCIe x4/SATA)
SATA4 x SATA-600 with RAID 0/1/5/10
Display
ChipsetIntel® HD Graphic
MemoryShare system memory
Display Interfaces1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort++
Expansion
PCIe x16 Slots1 x PCIe x16 slot (signal: x16 or x8), 1 x PCIe x16 slot (signal: x0 or x8)
PCIe x4 Slots3 x PCIe x4 slot open ended, 1 x PCIe x4 slot open ended (signal: x1)
PCI1 x PCI
I/o interfaces
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (supports Wake-on-LAN, PXE Boot ROM, and iAMT), 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (supports Wake-on-LAN, PXE Boot ROM)
USB 3.2 Gen 22 x USB 3.2 Gen 2x1 (10Gbps) (rear I/O)
USB 3.2 Gen 12 x USB 3.2 Gen 1x1 (5Gbps) (rear I/O), 2 x USB 3.2 Gen 1x1 (5Gbps) (internal, box header)
USB 2.06 x USB 2.0 (internal, pin header), 2 x USB 2.0 (internal, 180D type A)
Serial2 x RS-232 (Internal box header), 2 x RS-232/422/485 (rear I/O)
AudioHD Codec audio as MIC-in/Line-in/Line-out
PS/21 x PS/2 keyboard (internal box header)
TPMTPM 2.0 (optional)
SMBusYes
Digital I/O8-channel programmable
Physical
Form FactorATX
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V/ 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
CPU SocketLGA1200 socket 11th/10th gen Intel® Core™ i9/i7/i5/i3 or Xeon® W processor (up to 125W)
ChipsetIntel® W480E
System Memory4 x 288-pin DDR4-2933 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Storage
M.2M.2 Key M 2280 (signal: PCIe x4/SATA)
SATA4 x SATA-600 with RAID 0/1/5/10
Display
ChipsetIntel® HD Graphic
MemoryShare system memory
Display Interfaces1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort++
Expansion
PCIe x16 Slots1 x PCIe x16 slot (signal: x16 or x8), 1 x PCIe x16 slot (signal: x0 or x8)
PCIe x4 Slots3 x PCIe x4 slot open ended, 1 x PCIe x4 slot open ended (signal: x1)
PCI1 x PCI
I/o interfaces
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (supports Wake-on-LAN, PXE Boot ROM, and iAMT), 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (supports Wake-on-LAN, PXE Boot ROM)
USB 3.2 Gen 22 x USB 3.2 Gen 2x1 (10Gbps) (rear I/O)
USB 3.2 Gen 12 x USB 3.2 Gen 1x1 (5Gbps) (rear I/O), 2 x USB 3.2 Gen 1x1 (5Gbps) (internal, box header)
USB 2.06 x USB 2.0 (internal, pin header), 2 x USB 2.0 (internal, 180D type A)
Serial2 x RS-232 (Internal box header), 2 x RS-232/422/485 (rear I/O)
AudioHD Codec audio as MIC-in/Line-in/Line-out
PS/21 x PS/2 keyboard (internal box header)
TPMTPM 2.0 (optional)
SMBusYes
Digital I/O8-channel programmable
Physical
Form FactorATX
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V/ 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
