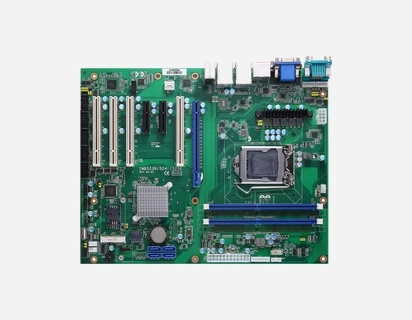

IMB524R
ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® H310, USB 3.2 Gen1, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort++, DVI-D, and HDMI
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
- Two 288-pin DDR4-2666/2400 DIMM for up to 64GB of memory
- DisplayPort++, DVI-D, HDMI and VGA with dual-view supported
- 4 SATA-600
- 1 PCI Express Mini Card slot
- 4 USB 3.2 Gen1 and 5 USB 2.0
- TPM 2.0 supported (optional)
- Intel® H310 chipset
- 1 x PCIe x16 slot
- 2 x PCIe x4 slot (2 PCIe x1 signal)
- 4 x PCI slot
- 2 x 10/100/1000 Mbps Ethernet (Intel® I219-LM and I210-AT)
- HD Codec audio with Realtek ALC888
- Hardware monitoring with Smart fan control
- 8-channel programmable Digital I/O
- AMI BIOS
- Watchdog Timer (255 levels, 1 to 255 sec)
Computer
CPU SocketLGA1151
CPU Support9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (up to 95W)
System Memory2 x 288-pin DDR4-2666/2400 DIMM, up to 64GB
ChipsetIntel® H310
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec
Display
Graphics ChipsetIntel® HD Graphic
Memory SizeShare system memory
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort++1 x DisplayPort++
I/o interfaces
USB 3.2 Gen 14 x USB 3.2 Gen 1x1 (5Gbps) (rear I/O)
USB 2.05 x USB 2.0 (pin header, 180D type A)
Serial4 x RS-232 (Internal box header); 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
PS/21 x PS/2 keyboard and mouse
Ethernet1 x 10/100/1000 Mbps (Intel® I219-LM, Wake-on-LAN, PXE Boot ROM); 1 x 10/100/1000 Mbps (Intel® I210-AT, Wake-on-LAN, PXE Boot ROM)
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
TPMTPM 2.0 (optional)
SMBusYes
Storage
SATA4 x SATA-600
Expansion
PCIe x16 Slot1 x PCIe x16 slot
PCIe x4 Slot2 x PCIe x4 slot (2 PCIe x1 signal)
PCI Slot4 x PCI slot
PCIe Mini Card1 x PCIe Mini Card slot with PCIe x1 & USB 2.0
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
BatteryLithium 3 V/ 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Monitoring
Hardware MonitoringDetect CPU/system temperature, voltage and supports Smart fan control
