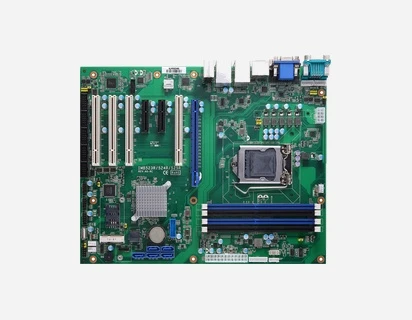

IMB523R
ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, USB 3.2 Gen2, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort++, DVI-D, and HDMI
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
- DisplayPort, DVI-D, HDMI and VGA with triple-view supported
- 5 SATA-600 with RAID 0/1/5/10
- 1 PCI Express Mini Card slot
- Two USB 3.2 Gen2 and four USB 3.2 Gen1
- TPM 2.0 supported (optional)
- Intel® Q370 chipset
- 1 x PCIe x16 slot, 2 x PCIe x4 slot, 4 x PCI slot
- 2 x 10/100/1000 Mbps Ethernet with Wake-on-LAN and PXE Boot ROM
- HD Codec audio with Realtek ALC888
- 8-channel programmable Digital I/O
- Hardware monitoring with CPU/system temperature detection and smart fan control
Computer
Processor SocketLGA1151
Supported CPUs9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® (up to 95W)
System Memory4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
ChipsetIntel® Q370
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Display
GraphicsIntel® HD Graphic (shared system memory)
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort1 x DisplayPort++
I/o interfaces
USB 3.2 Gen22 x USB 3.2 Gen 2x1 (10Gbps)
USB 3.2 Gen14 x USB 3.2 Gen 1x1 (5Gbps)
USB 2.07 x USB 2.0 (pin header, 180D type A)
Serial4 x RS-232 (internal box header); 2 x RS-232/422/485 (1 rear I/O, 1 internal)
PS/21 x PS/2 keyboard and mouse combo port
Ethernet1 x 10/100/1000 Mbps with Intel® I219-LM; 1 x 10/100/1000 Mbps with Intel® I210-AT
AudioHD Codec MIC-in/Line-in/Line-out with Realtek ALC888
TPMTPM 2.0 (optional)
SMBusYes
Digital I/O8-channel programmable
Storage
SATA5 x SATA-600 with RAID 0/1/5/10
Expansion
PCIe x161 x slot
PCIe x42 x slots
PCI4 x slots
PCIe Mini Card1 x slot (PCIe x1 & USB 2.0 & SATA)
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V / 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
