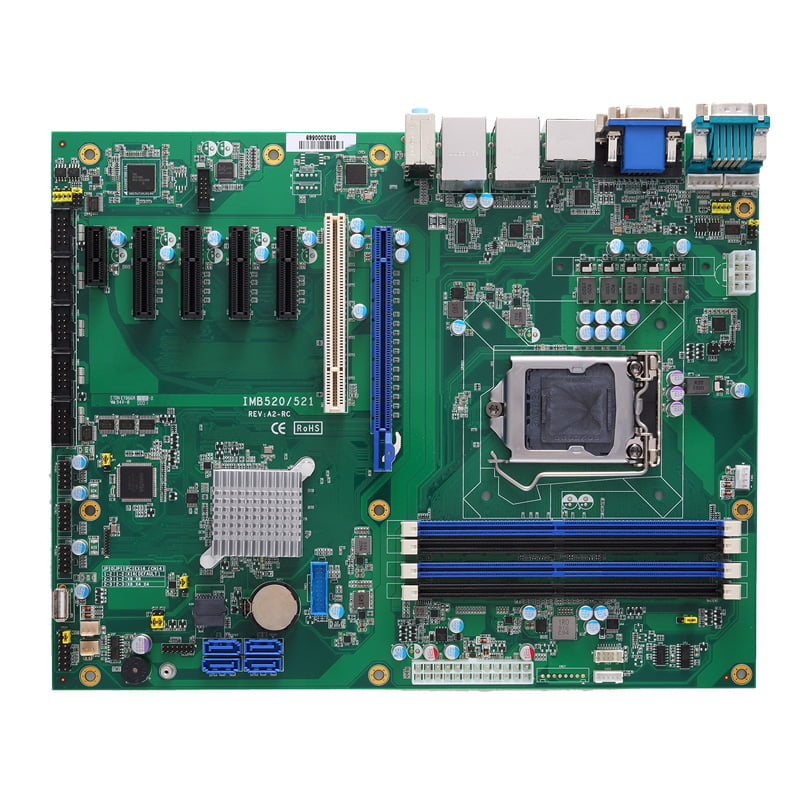

IMB521R
Industrial ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor and Intel® Q370
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 ECC DIMM for up to 128GB of memory
- DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
- 4 SATA-600 with RAID 0/1/5/10
- 2 USB 3.1 Gen2 and four USB 3.1 Gen1
- TPM 2.0 supported (optional)
- Intel® C246 chipset
- Dual LAN (10/100/1000 Mbps Ethernet)
- Hardware monitoring with CPU/system temperature detection and smart fan control
- HD Codec audio with Realtek ALC888
Computer
CPU SocketLGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
System Memory4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
ChipsetIntel® C246
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Storage
SATA4 x SATA-600 with RAID 0/1/5/10
I/o interfaces
Serial4 x RS-232 (Internal box header), 2 x RS-232/422/485 (COM 1: rear, COM 2: internal box header)
USB2 x USB 3.2 Gen2x1 (10Gbps) (rear I/O), 4 x USB 3.1 Gen1 (rear I/O, internal box header), 7 x USB 2.0 (pin header, 180D type A)
PS/21 x PS/2 keyboard and mouse
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (supports Wake-on-LAN, PXE Boot ROM, iAMT), 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (supports Wake-on-LAN, PXE Boot ROM)
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 (optional)
Expansion
PCIe x161 x PCIe x16 slot
PCIe x44 x PCIe x4 slot
PCIe x11 x PCIe x1 slot
PCI1 x PCI
Display
GraphicIntel® HD Graphic
Memory SizeShare system memory
Display Interface1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort++
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V / 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
CPU SocketLGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
System Memory4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
ChipsetIntel® C246
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
Storage
SATA4 x SATA-600 with RAID 0/1/5/10
I/o interfaces
Serial4 x RS-232 (Internal box header), 2 x RS-232/422/485 (COM 1: rear, COM 2: internal box header)
USB2 x USB 3.2 Gen2x1 (10Gbps) (rear I/O), 4 x USB 3.1 Gen1 (rear I/O, internal box header), 7 x USB 2.0 (pin header, 180D type A)
PS/21 x PS/2 keyboard and mouse
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® I219-LM (supports Wake-on-LAN, PXE Boot ROM, iAMT), 1 x 10/100/1000 Mbps Ethernet with Intel® I210-AT (supports Wake-on-LAN, PXE Boot ROM)
AudioHD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 (optional)
Expansion
PCIe x161 x PCIe x16 slot
PCIe x44 x PCIe x4 slot
PCIe x11 x PCIe x1 slot
PCI1 x PCI
Display
GraphicIntel® HD Graphic
Memory SizeShare system memory
Display Interface1 x VGA, 1 x DVI-D, 1 x HDMI, 1 x DisplayPort++
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
BatteryLithium 3 V / 220 mAH
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
