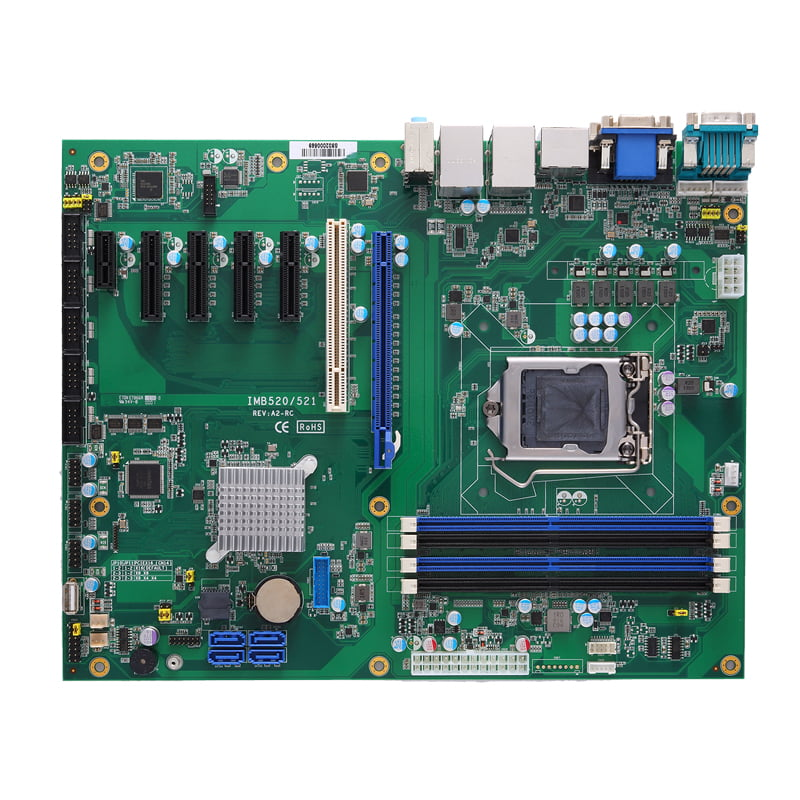

IMB520R
Industrial ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor and Intel® H310
Features
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
- Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
- VGA, DisplayPort++, DVI-D and HDMI with triple-view supported
- 4 SATA-600 with RAID 0/1/5/10
- Two USB 3.2 Gen2x1 (10Gbps) and four USB 3.2 Gen1x1 (5Gbps)
- TPM 2.0 supported (optional)
- Dual Gigabit Ethernet (Intel® I219-LM and Intel® I210-AT)
- HD Codec audio with Realtek ALC888
- Hardware monitoring with CPU/system temperature detection and smart fan control
- 5 x COM ports (RS-232 and RS-232/422/485)
- 8-channel programmable digital I/O
- SMBus support
- Watchdog Timer with 255 levels
Computer
CPU SocketLGA1151
Supported Processors9th/8th gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® (up to 95W)
ChipsetIntel® Q370
System Memory4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
BatteryLithium 3 V/ 220 mAH
Display
Graphics ChipsetIntel® HD Graphic
MemoryShare system memory
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort1 x DisplayPort++
Multi-DisplayTriple-view supported
I/o interfaces
USB 3.2 Gen22 x USB 3.2 Gen2x1 (10Gbps) rear I/O
USB 3.2 Gen14 x USB 3.2 Gen1x1 (5Gbps) rear I/O and internal box header
USB 2.07 x USB 2.0 pin header (180D type A)
Serial4 x RS-232 internal box header, 2 x RS-232/422/485 (COM 1 rear, COM 2 internal)
PS/21 x PS/2 keyboard and mouse combo port
Ethernet1 x 10/100/1000 Mbps with Intel® I219-LM (Wake-on-LAN, PXE Boot ROM, iAMT)
Ethernet1 x 10/100/1000 Mbps with Intel® I210-AT (Wake-on-LAN, PXE Boot ROM)
AudioHD Codec MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 (optional)
Storage
SATA4 x SATA-600 with RAID 0/1/5/10
Expansion
PCIe x161 x PCIe x16 slot
PCIe x44 x PCIe x4 slot
PCIe x11 x PCIe x1 slot
PCI1 x PCI
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Computer
CPU SocketLGA1151
Supported Processors9th/8th gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® (up to 95W)
ChipsetIntel® Q370
System Memory4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
BIOSAMI BIOS
Watchdog Timer255 levels, 1 to 255 sec.
BatteryLithium 3 V/ 220 mAH
Display
Graphics ChipsetIntel® HD Graphic
MemoryShare system memory
VGA1 x VGA
DVI-D1 x DVI-D
HDMI1 x HDMI
DisplayPort1 x DisplayPort++
Multi-DisplayTriple-view supported
I/o interfaces
USB 3.2 Gen22 x USB 3.2 Gen2x1 (10Gbps) rear I/O
USB 3.2 Gen14 x USB 3.2 Gen1x1 (5Gbps) rear I/O and internal box header
USB 2.07 x USB 2.0 pin header (180D type A)
Serial4 x RS-232 internal box header, 2 x RS-232/422/485 (COM 1 rear, COM 2 internal)
PS/21 x PS/2 keyboard and mouse combo port
Ethernet1 x 10/100/1000 Mbps with Intel® I219-LM (Wake-on-LAN, PXE Boot ROM, iAMT)
Ethernet1 x 10/100/1000 Mbps with Intel® I210-AT (Wake-on-LAN, PXE Boot ROM)
AudioHD Codec MIC-in/Line-in/Line-out with Realtek ALC888
Digital I/O8-channel programmable
SMBusYes
TPMTPM 2.0 (optional)
Storage
SATA4 x SATA-600 with RAID 0/1/5/10
Expansion
PCIe x161 x PCIe x16 slot
PCIe x44 x PCIe x4 slot
PCIe x11 x PCIe x1 slot
PCI1 x PCI
Physical
Dimensions305 x 244 mm
Board Thickness1.6 mm
Form FactorATX
Environmental
Operating Temperature0°C to +60°C (+32°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
