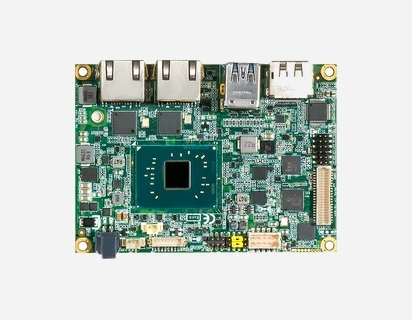

PICO318
Pico-ITX SBC with Intel® Pentium® Processor N4200/Celeron® Processor N3350, DisplayPort++, LVDS, 2 GbE LAN, and Audio
Features
- Intel® Pentium® processor N4200 or Celeron® processor N3350 onboard
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 GbE LAN with Intel® I210-AT supporting Wake-on-LAN and PXE Boot ROM
- 1x DisplayPort++
- 1x LVDS with 18/24-bit single/dual channel support
- M.2 Key B slot (SATA/USB2.0/USB3.0/PCIe x2 optional)
- 1x mSATA optional
- 1 PCI Express Mini Card slot
- 2x USB 2.0
- 2x USB 3.0
- 1x RS-232/422/485 serial port
- 1x RS-232 serial port
- HD Codec audio (Mic-in/Line-in/Line-out) with Realtek ALC888S
- 4-channel programmable Digital I/O
- Hardware monitoring with CPU/system temperature and voltage detection
- Lithium 3V/220mAh battery
- AMI BIOS
- Watchdog timer with 65536 levels (0 to 65535 sec)
- SMBus compatible with I2C
Computer
CPUIntel® Pentium® processor N4200 (1.1-2.5GHz, 2MB cache, 6W) or Intel® Celeron® processor N3350 (1.1-2.4GHz, 2MB cache, 6W)
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Display
ChipsetIntel® integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface1x DisplayPort++, 1x LVDS (18/24-bit single/dual channel)
I/o interfaces
Ethernet2x 10/100/1000 Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN and PXE Boot ROM
USB2x USB 2.0, 2x USB 3.0
Serial1x RS-232/422/485, 1x RS-232
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC888S
Digital I/O4-channel in/out programmable
SMBusYes, compatible with I2C
Storage
SSD1x M.2 Key B 2242/3042 (SATA/USB2.0/USB3.0/PCIe x2 optional), 1x mSATA optional
SATAN/A
Expansion
Expansion Interface1x Half-size PCI Express Mini Card slot
Power
Power Input2x2-pin +12VDC-in connectors with AT auto power on
Power RequirementsIntel® Pentium® N4200@1.1GHz minimum RMS: +12V@1.3A; Intel® Celeron® N3350@1.1GHz minimum RMS: +12V@1.1A
BatteryLithium 3V/220mAh
Physical
Dimensions100 x 72 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20°C to +60°C (-4°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Certifications
TPMN/A
Hardware MonitoringDetect CPU/system temperature and voltage
Computer
CPUIntel® Pentium® processor N4200 (1.1-2.5GHz, 2MB cache, 6W) or Intel® Celeron® processor N3350 (1.1-2.4GHz, 2MB cache, 6W)
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Display
ChipsetIntel® integrated Gfx graphic engine
Memory SizeShare system memory
Display Interface1x DisplayPort++, 1x LVDS (18/24-bit single/dual channel)
I/o interfaces
Ethernet2x 10/100/1000 Mbps Ethernet with Intel® I210-AT supporting Wake-on-LAN and PXE Boot ROM
USB2x USB 2.0, 2x USB 3.0
Serial1x RS-232/422/485, 1x RS-232
AudioHD Codec audio as Mic-in/Line-in/Line-out with Realtek ALC888S
Digital I/O4-channel in/out programmable
SMBusYes, compatible with I2C
Storage
SSD1x M.2 Key B 2242/3042 (SATA/USB2.0/USB3.0/PCIe x2 optional), 1x mSATA optional
SATAN/A
Expansion
Expansion Interface1x Half-size PCI Express Mini Card slot
Power
Power Input2x2-pin +12VDC-in connectors with AT auto power on
Power RequirementsIntel® Pentium® N4200@1.1GHz minimum RMS: +12V@1.3A; Intel® Celeron® N3350@1.1GHz minimum RMS: +12V@1.1A
BatteryLithium 3V/220mAh
Physical
Dimensions100 x 72 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-20°C to +60°C (-4°F to +140°F)
Humidity10% to 95% relative humidity, non-condensing
Certifications
TPMN/A
Hardware MonitoringDetect CPU/system temperature and voltage
