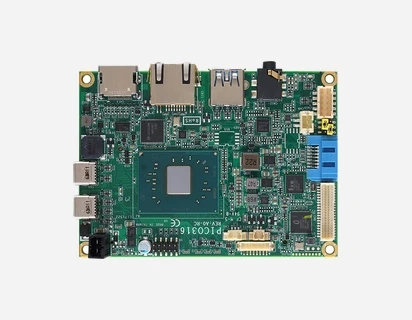

PICO316
Pico-ITX SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350/J3455, LVDS, HDMI, GbE LAN and Audio
Features
- Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 3 USB 3.0
- 1 PCI Express Mini Card slot with mSATA supported
- Low Power
- Fanless
- PCIe Mini
- Full-size PCI Express Mini Card slot with mSATA supported
- 1xSATA-600
- 1x10/100/1000Mbps Ethernet with Intel® I211-AT; supports Wake-on-LAN, PXE Boot ROM
- HD Codec audio as Line-out with Realtek ALC888S
- 2xRS-232 Serial
- SMBus compatible with I2C
- Hardware Monitoring - Detect CPU/system temperature and voltage
- AMI BIOS
- Watchdog Timer 65536 levels, 1 to 65535 sec.
Computer
CPUIntel® Pentium® processor N4200 & Celeron® processor N3350/J3455 onboard
System Memory1x204-pin DDR3L-1867 SO-DIMM, up to 8GB
ChipsetSoC integrated
BIOSAMI
Watchdog Timer65536 levels, 1 to 65535 sec.
Storage
SSD1xmSATA (Optional)
SATA1xSATA-600
Expansion
Expansion Interface1xFull-size PCI Express Mini Card slot with mSATA supported
I/o interfaces
USB2xUSB 2.0, 3xUSB 3.0
Serial2xRS-232
Ethernet1x10/100/1000Mbps Ethernet with Intel® I211-AT; supports Wake-on-LAN, PXE Boot ROM
AudioHD Codec audio as Line-out with Realtek ALC888S
SMBusYes; compatible with I2C
Hardware MonitoringDetect CPU/system temperature and voltage
Power
Power Input2x2-pin connector +5V DC-in only, AT Auto Power On function supported
BatteryLithium 3V/220mAH
Power Requirements (Intel Pentium N4200 @ 1.1GHz 8GB DDR3L Max RMS)+5V @ 3.3A
Power Requirements (Intel Celeron N3350 @ 1.1GHz 8GB DDR3L Max RMS)+5V @ 2.3A
Power Requirements (Intel Celeron J3455 @ 1.5GHz 8GB DDR3L Max RMS)+5V @ 4A
Physical
Dimensions100x72mm
Board Thickness1.6mm
Environmental
Operating Temperature Standard-20℃ to +60℃ (-4F to +140F)
Operating Temperature Optional-20℃ to +70℃ (-4F to +158F)
Humidity10% to 95% relative humidity, non-condensing
