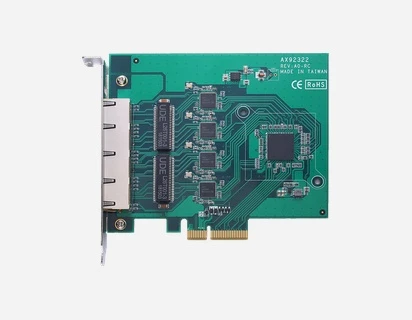

AX92322
2-port/4-port GigE PCI Express Card
Features
- 2 or 4 independent Intel® Ethernet Controller i210-AT
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Supports two or four GbE LAN ports
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
Computer
Host Bus4-lane Gen2 PCIe interface, compliant with PCI Express base specification, revision 2.0
Bus TypePCI Express x4
I/o interfaces
Channels2/4 ports
Ethernet Chip2 or 4 x Intel® Ethernet Controller i210-AT
Data Transfer Rate10/100/1000 Mbps
I/O ConnectorRJ-45
Supported Features9.5KB Jumbo Frame and IEEE 1588
Power
Power ConsumptionPower from PCIe slot, 1.73A@+3.3V max.
Physical
Dimensions125x111mm
Environmental
Operating Temperature0℃ to +70℃ (+32℉ to +158℉)
Storage Temperature-20℃ to +80℃ (-4℉ to +176℉)
Operating Humidity10-95% RH, non-condensing
Software
Supported OSWindows® 7/10 (32/64-bit), Linux
