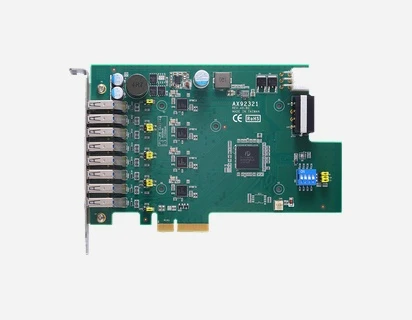

AX92321
4-port/8-port USB 3.0 PCI Express Card with 4 Independent Host Controllers
Features
- 4 or 8 USB 3.0 ports
- 4 independent USB 3.0 host controllers
- 900 mA/1500 mA max. per port configurable via jumper settings
- Compliant with USB 3.0 Rev.1.0 and Intel® xHCI Rev.1.0
- PCI Express x4 interface
- Operating temperature from 0˚C to 70°C
- Supports Windows® 7/10 and Ubuntu 20.04 LTS
- Supports power on/off for each port via software settings
Expansion
Bus TypePCI Express x4 Gen2
USB Channels4 or 8
Power
Power RequirementsPower from PCIe slot (total power max. 20W USB power output) 2.1A@+12V, 0.8A@+3.3V; Power from ATX power connector 5A@+12V or 2.5A@+24V, 0.8A@+3.3V (from PCIe slot); Power from 4P Molex power connector 5A@+12V, 0.8A@+3.3V (from PCIe slot)
Power Connector4-pin Molex connector, 6-pin ATX power connector
Port Power Output900 mA/1500 mA max. per port configurable via jumper
Physical
Dimensions168mm (6.6") x 107mm (4.2")
Environmental
Operating Temperature0℃ to +70℃ (+32℉ to +158℉)
Storage Temperature-20℃ to +80℃ (-4℉ to +176℉)
Operating Humidity10-95% RH, non-condensing
Compatibility
OSWindows® 7/10 (32/64-bit), Ubuntu 20.04 LTS
SoftwareEach port's power on/off is controlled by software
USB StandardUSB 3.0 Rev.1.0, Intel® xHCI Rev.1.0
Expansion
Bus TypePCI Express x4 Gen2
USB Channels4 or 8
Power
Power RequirementsPower from PCIe slot (total power max. 20W USB power output) 2.1A@+12V, 0.8A@+3.3V; Power from ATX power connector 5A@+12V or 2.5A@+24V, 0.8A@+3.3V (from PCIe slot); Power from 4P Molex power connector 5A@+12V, 0.8A@+3.3V (from PCIe slot)
Power Connector4-pin Molex connector, 6-pin ATX power connector
Port Power Output900 mA/1500 mA max. per port configurable via jumper
Physical
Dimensions168mm (6.6") x 107mm (4.2")
Environmental
Operating Temperature0℃ to +70℃ (+32℉ to +158℉)
Storage Temperature-20℃ to +80℃ (-4℉ to +176℉)
Operating Humidity10-95% RH, non-condensing
Compatibility
OSWindows® 7/10 (32/64-bit), Ubuntu 20.04 LTS
SoftwareEach port's power on/off is controlled by software
USB StandardUSB 3.0 Rev.1.0, Intel® xHCI Rev.1.0
